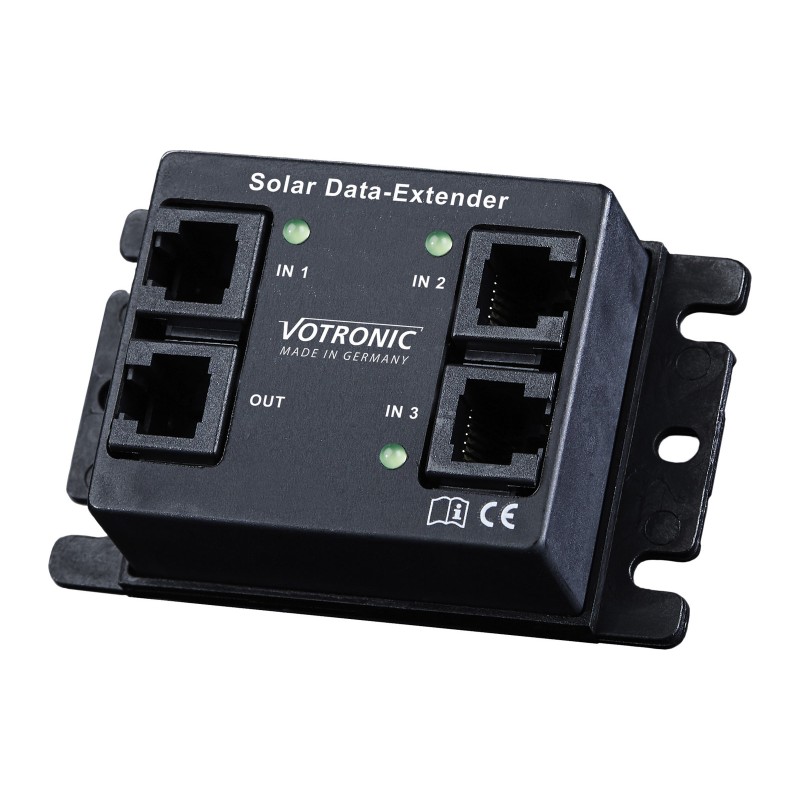

Votronic 3n1 Solar Data Extender

The Solar Data Extender combines data from up to three solar controllers so they can be displayed on one screen.You can still use the usual LCD display.Supports the following devices

• Solar charge controller in SR and MPP technology (based on serial number 14Vxx.xxxxx)
• Battery charger of type VBCS Triple
• LCD Solar Computer S (from the serial number 15V40.xxxxx)
• LCD charge control S
• VPC series with solar function
• Bluetooth Connector S-BC

Installation and connection

The Solar Data Extender can be re-equipped at any time.It has three separate entries (IN1, IN2, IN3).The signals are combined and made available through the output (OUT).There you can connect a solar screen (e.g. LCD Solar Computer S).
Plug between the Votronic solar charge controller and the solar screen (e.g. LCD Solar Computer S) using the modular cable included in the supply volume.The IN1 connection should always be connected, as it is where the device feed is produced.

details

• Nominal voltage (feeding through connected devices) [V]: 12 and 24
• Operating voltage range [V]: 8 - 32
• Current consumption on hold, typical [mA]0.7
• Active current consumption, typical [mA]: 10
• Environmental conditions, humidity: maximum 95 % of environmental humidity, without condensation

Scope of delivery
3 6 pole control cables, 0.5 m long, instruction manual
