Line Monocrystalline Solaset HPC

The monocrystalline solar generators of the "HPC" line achieve high performance by means of electric chainingmonocrystalline silicon solar cells and highly efficient subsequent contactin one module.Solar cells are embedded in EVA plastic between a multilayer backup film and a special solar glass.This heavily welded laminate protects the cells from moisture and allows thermal expansion.Due to excellent light absorption, a low level of irradiation is still used.

• Higher product in terms of performance and appearance.
• High-performance solar module with monocrystalline silicon cells with rear contact
• Extremely high load power in the smallest area (with an area of only 0.5 m2 - 5.7 A load current)
• very heat resistant: greater power gain even in warm climates
• Due to its dimensions, it is especially suitable for use in caravans and mobile homes.

Space miracle!- AS 90/27 HPC solar module
The 90 watt high performance module adapts to any caravan roof thanks to its small installation area.The solar generator "AS 90/27 HPC" achieves its high performance by electrically connecting27 monocrystalline silicon solar cells and later high-efficiency contactin a module.

The winner!- AS 95/30 HPC solar module
The high performance solar generator "AS 95/30 HPC" provides a maximum power of 95 watts.30 highly efficient monocrystalline silicon solar cells with subsequent contact represent quality, high load capacity and attractive design.

SummaryAS 90/27 HPC

Nominal tension
15.8 V
Current
nominal 5.7 A
Short-circuit current
5,95 A
Open circuit voltage
18.4 V

SummaryAS 95/30 HPC

nominal voltage 17,2 V Nominal current
5.5 A Currentshort circuit
5,85 AVoltage
circuitopen 20.4V

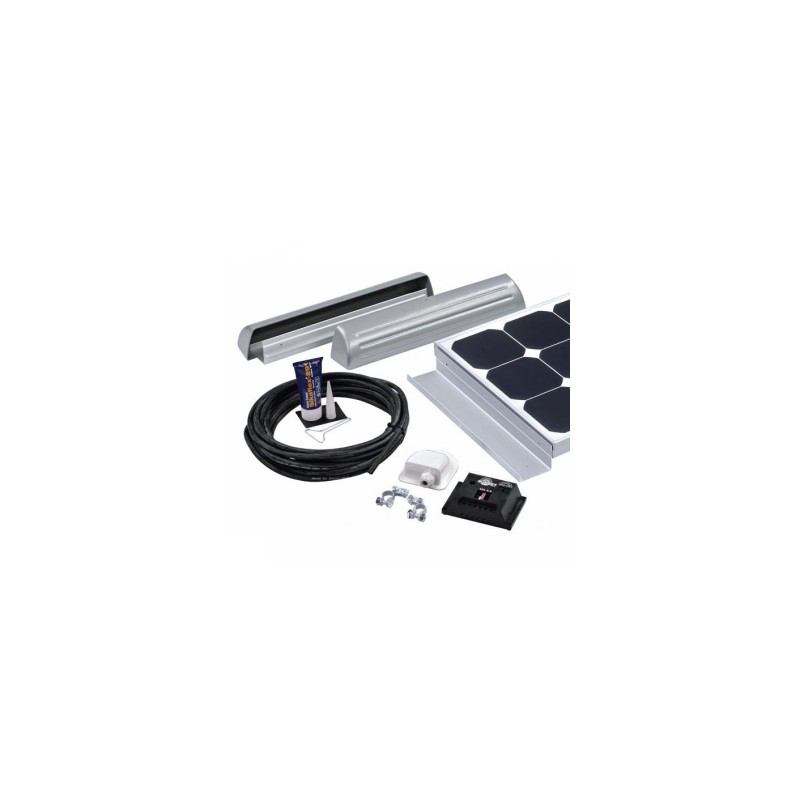

Equipment:High-performance monocrystalline solar modules (see description above), charge controller, solar cable, adhesive, ceiling mounting, passable including accessories, battery pole clamps.

In modern mobile homes with high quality equipment, more and more consumers must receive electricity.Therefore, we recommend our savings set with a power of 190 watts, which is optimized in terms of price and performance.

AYUDA FOR PLANNING How to find the right solar module
