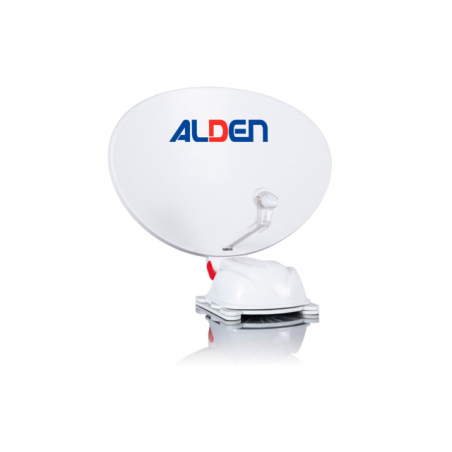

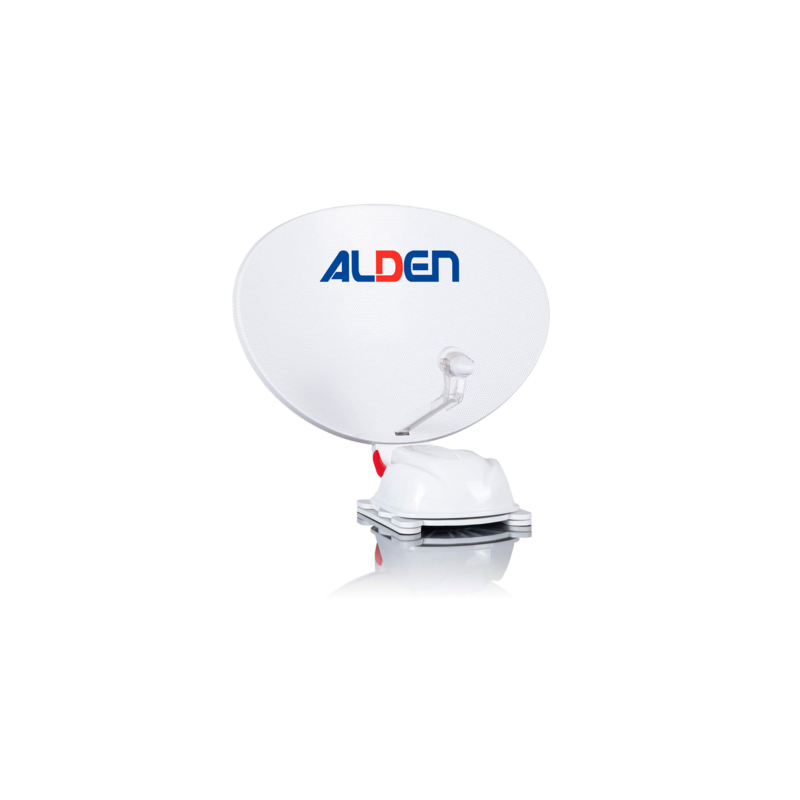

Alden Satellite Control Module Set

AS2 HD 80
Quality Platinium for the most demanding.With the AS2 HD series, ALDEN presents fully automatic satellite systems.The AS2 HD series is synonymous with the highest quality, i.e. functionality with simple handling and low power consumption.Systems convince with a very fast alignment and the best reception range with a simple operation.Modern design is underlined by the use of screened off-centered mirrors.From 2021, the AS2 HD series has been expanded to include a grey variant.

designs and more
The outer skin of the AS2 HD light series impresses with its modern lines, which correspond to the understanding of the design of our time and are perfectly integrated in the predominant aspect of the current caravans and caravans.The counterbalanced mirror also contributes to the elegant appearance of the antenna that, with its perforated surface, is responsible for a discreet appearance, almost overlooked, and a single reduction of the wind load.

finished
All AS2 HD antennas are optionally available with TWIN-LNB or with the ALDEN SKEWmatic system.Thanks to Auto-SKEW and GPS, the system optimizes the range and also allows you to align the antenna very quickly.As a TWIN version, it is also optionally suitable for the independent use of two televisions.The very compact AS2 80 Platinum model is the highlight of the series.It is highly recommended to take a look.

Details Antenna AS2 HD Platinium

• Of the highest quality
• Very fast alignment
• Best reception range
• Available with SKEWmatic
• Modern design
• Tamil offset mirror
• Low energy consumption

SSC HD Control Module

Perfected for decades.ALDEN has developed the now legendary SSC HD control module to operate the SAT-TV combination on a unique product in years of progressive research work.Among other things, it is known to quickly find the desired satellite.Apart from that, with its exclusive electronics, it is perfectly suited to operate high-definition televisions.The module can be used independently of the receiver and is easy and convenient to use.Updates can be made by yourself.In the TV mode (e.g., SAT + LED TV 18.5"), it convinces with a very low power consumption of only 17 watts (awaits: 0.4 watts) and is also equipped with a network switch (0 watts).The alignment of the antenna is as completely automatic as the retraction when the vehicle starts.

Features
To adjust the operating parameters, a practical display is added to the module control buttons.Apart from that, it is possible to align the antenna in combination with an ALDEN TV.With the SSC HD control module, the search process is carried out using the modern HD method.The module was developed for mobile networks on board 12V and tolerates fluctuations of 10-17 volts.There are a total of four menu languages available: German, English, French and Dutch.A USB-based update system facilitates operating software updates and transponders.

Details SSC HD control module

• Independent receiver
• Fully automatic alignment
• Easy to handle
• Configuration Adjustment Screen
• Controlability (orientation) via ALDEN LED TV devices
• Search method in HD technology
• Pre-programmed satellites:
• Astra 19, Astra 23, Eurobird 9, Hotbird 13, Thor 0.8, Astra 4, Hispasat 30, Astra 28
• Menu languages: German, English, French, Dutch
• Connections: 12 volts for ALDEN TV, IN/OUT antenna, USB (for service)
• Optional external control panel connection
• Automatic retraction of the antenna when the vehicle starts
• Low energy consumption
• On switch (0 watts)
• Operation: 12 volts (10 - 17 volts)
• Consumption: approximately 4 watts / waiting 0.4 watts
• Dimensions wide x high x depth (cm): 17 x 4,5 x 12
• Weight: 0.4 kg
