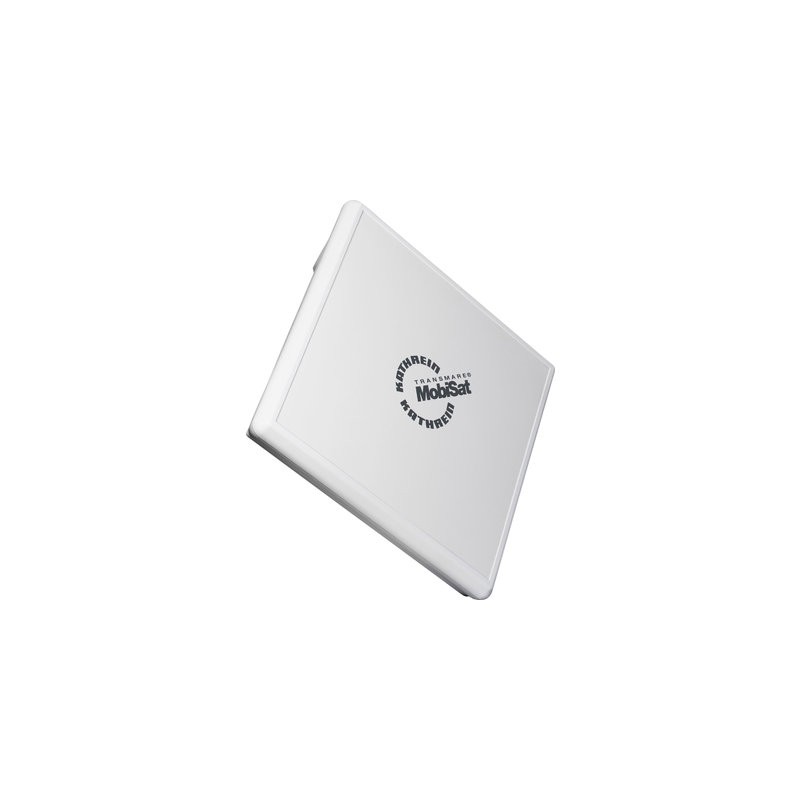

Flat antenna Kathrein BAS 66 Skew

BAS 66 oblique flat antenna, mobile, with double LNB and oblique adapter for HDM articulated satellite mast

Flat antenna with double LNB and biased adapter plate.Despite its small size, the BAS 66 Skew flat antenna offers an optimal satellite reception.This is possible thanks to the special structure of bee bread from the surface.The tilted adapter plate allows to rotate the antenna to significantly optimize the reception on the edge of the satellite footprint.

• To receive digital satellite signals (compatible with Full HD and UHD)
• Frequency range: 10,70-12,75 GHz
• With double integrated LNB (two outputs)
• With a biased adapter (optimization of reception at the edge of the satellite footprint)
• For use in mobile homes, caravans or stationary trucks
• Suitable for mounting on HDM 14x articulated satellite masts
• Maximum permitted vehicle speed: 130 km/h (before descent)

Technical specifications

• Reception range [GHz]: Switchable: 10,70 - 11,70 (0 kHz) 11,70 - 12,75 (22 kHz)
• Switchable Polarization: Vertical (14V) Horizontal (18V)
• Gain [dB]: 한 55
• Exit Frequency [MHz]: 950-1950/1100-2150
• Frequency of the oscillator (LO) [GHz]: 9,75/10,6
• LNB feeding voltage [V]: Vertical: 11,5-14,0 / Horizontal: 16,0-19,0
• Maximum current consumption [mA]: 220
• Wind load [N]1): 240
• Dimensions [mm]: 500 × 500 × 109 (without support)
