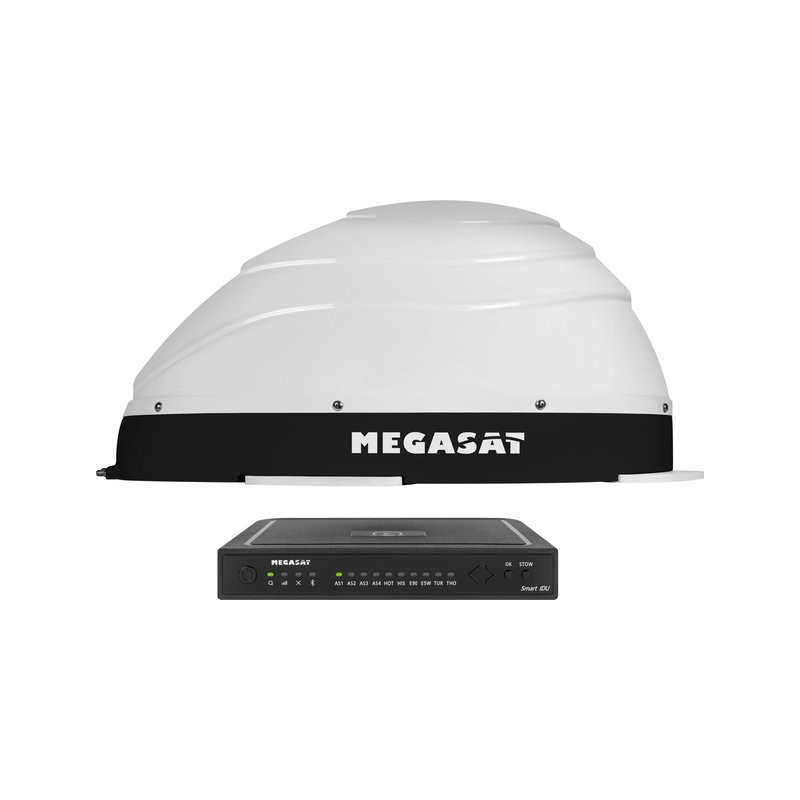

Megasat Campingman compact 3 single automatic satellite system

The Campingman Compact 3 is suitable for fixed installation on a caravan or mobile home.With just pressing a button, the antenna quickly finds the selected satellite.The elegant plastic cover protects the antenna as best as possible against the effects of climate and external damage.

The control unit offers an integrated Bluetooth module to connect to your smartphone or tablet.This means that future firmware updates can be comfortably updated via the smartphone.The free app is available for iOS and Android.The satellite is selected in the control unit or through the application on the mobile device.The satellite antenna is suitable for one or two participants (according to the version) and connects to the control unit with a single coaxial cable.

Scheduled satellites:

• Astra 1 (19.2° East)
• Astra 2 (28.2° East)
• Astra 3 (23.5° East)
• Astra 4 (4th East)
• Hotbird (13 ° East)
• Hispasat (30th West)
• Eutelsat 9B (9th East)
• Eutelsat 5 West (5 West)
• Turksat (42° East)
• Thor (0.8° West)

Technical specifications:

• Antenna type: Offset mirror
• Type of LNB: Universal NB
• Number of participants maximum: 1/2
• Frequency band: Ku band
• Input frequency range: 10.7 GHz - 12,75 GHz
• Polarization: V/H
• Signal gain: 33 dBi to 12.7 GHz
• Minimum PIRE (huella): 49 dBW
• Elevation (inclination): 15° - 62°
• Acimut (rotation): 380°
• 2-axis DC motor
• Bluetooth® module controller (functions firmware updates via mobile device)
• Free app for iOS and Android
• Temperature range: -25°C to 70°C
• Power supply: CC 12 volts
• Mirror size: 460 x 320 mm (width/high)

Logistic data:

• Antenna dimensions: 696 x 393 x 806 (An/Al/Pr)
• Antenna weight: 10 kg (net)
• Control unit dimensions: 195 x 30 x 150 (An/Al/Pr)
• Weight control unit: 360 g

Scope of delivery:

• Campingman compact 3
• control unit
• 1m coaxil cable
• 10m coaxil cable
• ceiling duct
• manual operation
