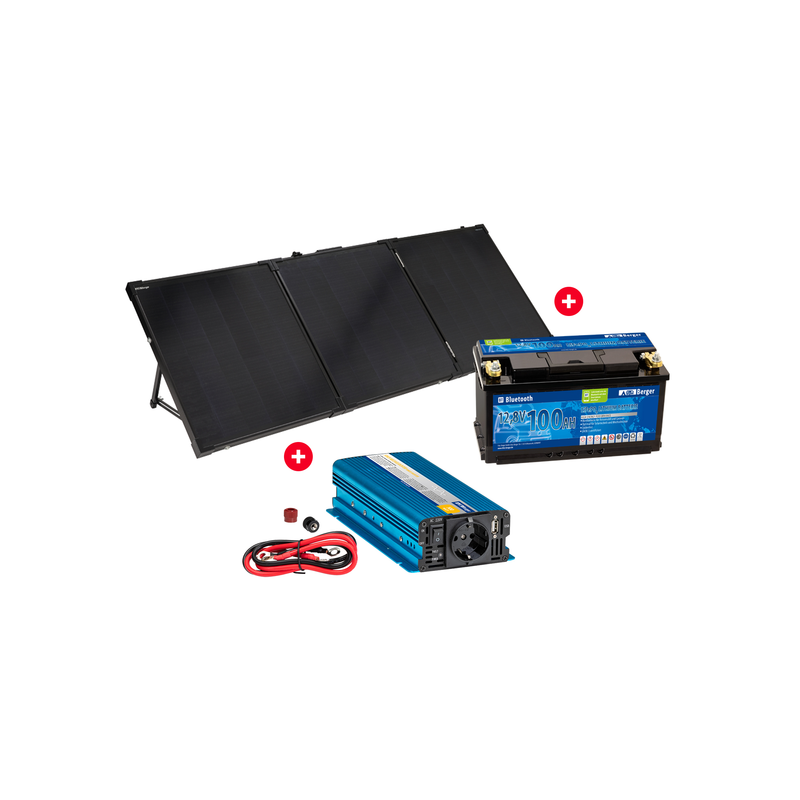

Solar self-sufficient set Berger

Note: battery clip not included

Travel or camp independently through the intelligent use of solar energy.
The Berger Solar Autark Set is very powerful, mobile and easy to use.

1. Senoidal investor Berger 12V to 230V blue 500 W "286040":

Senoidal wave investor Berger.Better performance, more useful life: with pure sinusoidal tension at 230 V. Ideal for use with solar systems.Simply connect the investor to your onboard battery.

2. Folding solar system Berger Deluxe / Solar Suitcase System 150 W "33303030":

Unpack, deploy and connect the cable.Mobile: generate electricity easily and anywhere.Space saving thanks to the compact and folding design.It can be used individually, suitable for all types of battery.Restless Resistant (IP68)
Perfect for shade parkers and anyone who values flexibility.Free alignment allows tracking with the sun to generate optimal performances at all times.Installed at a 45° angle with stable metal feet, the last rays of sun can be captured even in spring and autumn, when conventional solar solutions only produce low currents due to the flat position of the sun.

Stables and, at the same time, light: the solar bags Berger Deluxe is the logical development of existing portable solar solutions.The stable construction allows even use in adverse conditions: well thoughtful light construction ensures stability with little weight.The possible applications are diverse: in addition to the classic areas such as camping and leisure, the solar boxes are also suitable for demanding applications: The expeditions and applications in the maritime sector are possible without any problem thanks to the robust design.Motorhomes, vans, SUVs and many other isolated systems receive energy more easily than ever.Solar cases set a new standard for portable and flexible solar solutions.

Don't you have enough space for conventional solar panels? A solar housing can be easily transported at any time.This way, even a small car can supply energy in a self-sufficient way.The load controller and the connection cable are integrated into the housing, ensuring maximum flexibility.The only thing you need is a 12V solar battery to store the electricity generated and recover it at a later time.

3. Lithium battery Berger 100 Ah with Bluetooth "339070":

With the new lithium battery Berger high performance, not only saves weight, but also benefits from low energy loss and short load times.

Thanks to the stable voltage under enormous loads, the connections of toasters, air conditioners, teapots or other devices are not a problem for this battery.Connect your smartphone (iOS or Android) to the battery via Bluetooth and you will receive all the important information.The long service life compared to lead batteries is also convincing: a very high number of cycles (approx. 5000 cycles in a mobile home).

The battery can be charged with normal chargers for AGM or gel batteries with a load voltage of 14,4 V.Convince yourself of high capacity, excellent weight tolerance and null maintenance.

Electrical specifications:

• Nominal voltage 12.8 V
• Feature capacity 100 Ah
• Circuit voltage open to 100% 13,6 V
• Nominal energy 1280 Wh
• Internal resistance
• Own consumption BMS
• Autodownload
• Maximum blocks in row 4

download:

• Maximum constant discharge current 100 A
• Maximum discharge current 200 A (7.5 s ±2,5 s)
• PCM 250 A shutdown current (±50 A)

Recommended cutting voltage 11 V

• PCM 10 V off voltage
• Restart voltage 11,2 V

Temperatures:

• Download temperature -20 to 60°C
• Charging temperature 0 to 55 °C
• Storage temperature 0 to 40 °C
• Communication with Bluetooth 4.0 with App for Android/iOS

Mechanical specifications:

• Dimensions (L x An x Al) 353 x 175 x 190 mm
• Weight 12 kg
• Round end connections
• Torque bar ring 9 - 11 Nm
• Housing materialABS
• Protection class IP 56
• Type of cell/chemical LiFePO4

Charge:

• recommended current 50 A
• maximum charge current 100 A
• Recommended load voltage 14,4 -14,6 V
• PCM shutdown voltage 15,0 V

Need for CO2 free energy generation
