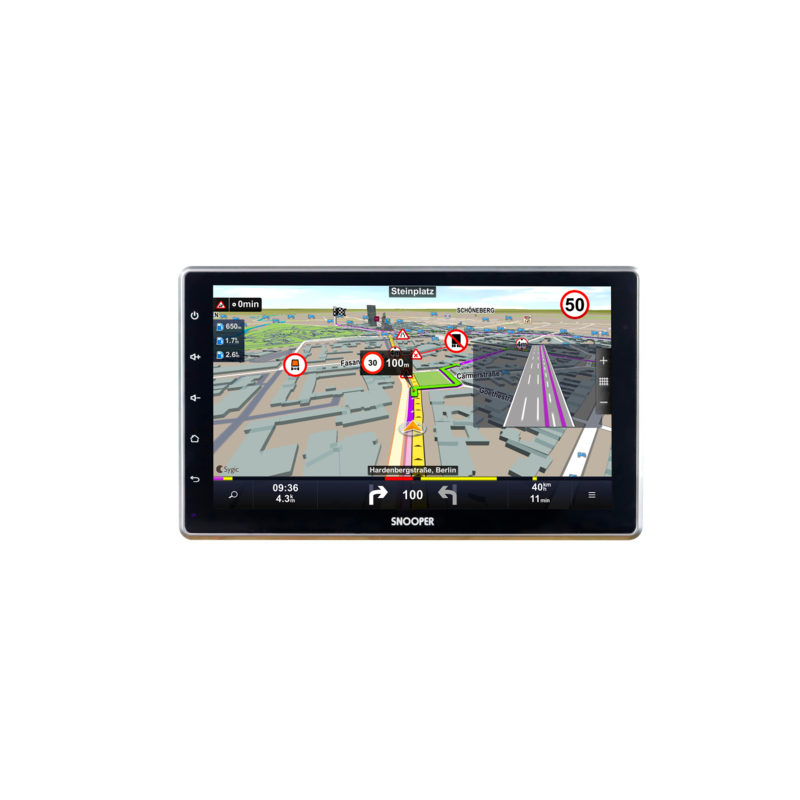

Multimedia navigation Snooper SMH Integrated 10.1-inch DAB+ device

Common functions of all Snooper multimedia devices with capacitive display, DAB+ and Wireless Airplay function!

Apple CarPlay Wireless and Andriod Auto Turn on
Bluetooth® on cell phone: pairing
the phone with the main unit via Bluetooth® Apple CarPlay with cable

Apple
CarPlay offers iPhone users an intuitive way to make calls, use maps, listen to music, and access messages with just one word or a touch.Third-party navigation applications, such as Google Maps, are also supported by iOS 12.0 and later versions.

Android Auto with cable
Android Auto is an easy way to use your Android phone in the car.Snooper's main units combine intuitive voice control with a large touch screen and excellent sound quality, which can also be used for functions such as Google Maps or video and audio playback.

Mirror Android USB
The USB duplication displays your Android phone on the large screen of the Snooper main drive, with an impressive sound.You can even control your Android phone from the device screen.Simply install the free "EasyConnection" app on your smartphone and connect it to devices via
USB or Bluetooth®.

Digital Audio Dissemination (DAB)
DAB is a digital radio technology for broadcasting radio stations now used in several European countries.Compared to traditional AM and FM radios, DAB offers a cleaner and clearer sound thanks to the noise reduction implemented.In addition, an improved DAB+ was launched in 2007, offering even greater audio quality and better reception.

Digital Run Time Correction
Tones of all speakers installed in the vehicle
can be leveled to reach your ears exactly at the same time.

15-band equalizer
The 15 tone control bands offer a detailed tone setting and many preset tones to suit your musical taste, sound feeling and listening environment.
Navigation online
The main units of SNOOPER support the
Google map function online.Sign up to quickly access your favorite places and best recommendations to help your trip go well.

Navigation offline
The main units of SNOOPER are also compatible with the iGO navigation solution.With pre-installed iGO maps, integrated navigation function and
external GPS antenna, you can safely navigate to your destination even without the Internet.

7-inch SMH-520DAB:
multimedia receiver without mechanism with advanced control of smartphones

Product dimensions and device information:

• Product dimensions: 178 x 100 x 170 mm
• Installation framework: 183 x 105 x 100 mm
• Built-in bezel: 188 x 116 mm
• 7-inch capacitive touch screen
• ISO cabling harness and adapter included

SMH-580DAB VW OEM Fit 8 inches:
VW DVD Multimedia Receiver with Advanced Smartphone Control

Product dimensions and device information:

• Product dimensions metal box: 180 x 100 x 152 mm
• 220 x 130 x 175 mm (including front cover)
• 8-inch capacitive touch screen
• Quadruple cabling harness and power quadruple included

10.1-inch SMH-550DAB:
multimedia floating screen receiver with advanced smartphone control

Product dimensions and device information:

• Product dimensions: 178 x 50 x 160 mm
• Metal box: 260 x 155 mm (screen)
• Installation framework: 182 x 53 x 85 mm
• 10.1 inches capacitive touch screen
• ISO cabling harness and adapter included

Specifications for all devices:

Android operating system and general features:

• Android operating system 10.0
• 8-core processor
• 4 GB of RAM and 64 GB of storage
• Quick Start Time
• Bluetooth® free hands system 5.0
• Sound quality DSP
• receiver
• radio DAB
• Apple CarPlay and Android Auto
• AHD rear view camera input
• Included IR Remote Control (only for SMH-520DAB and SMH-550DAB)
• Firmware/software update via USB
• backup storage
• Operating voltage: 13.8 V.

Navigation:

• GPS navigation for integrated car
• Any truck navigation can be installed from the app store
• Any smartphone for trucks can be operated on the device via Android Auto Wireless or Apple CarPlay

Features of the monitor and graphical user interface:

• with capacitive touchscreen
• Fingerprint protection film
• Multicolor key illumination
• Fixed panel
• Screen settings: brightness, dynamic screen and background
• regulator of intensity
• car.NTSC/PAL switching
• The screen can be turned off
• Offset
• demonstration mode
• background fisgón
• text of displacement
• Visual source mode: Duplication/CarPlay/Android Auto
• Multilingual team

Characteristics of the tuner:

• FM/AM radio
• RDS
• 18 presets
• Manual/automatic saved
• Auto1/ Auto2/ Manual tuning mode/ Search mode

DAB+ tuner characteristics:

• DAB+ tuner (Banda III)
• 15 presets
• Manual/automatic storage input
• Automatic switch DAB-DAB/DAB-FM
• DLS (dynamic label)

Bluetooth® functions:

• High quality broadband speaker
• private mode
• Call interruption function
• Audio transmission (A2DP)
• Explore the music library
• Visualization of the album cover
• Accessible tickets in the phone book with alphabetical search in the telephone guide
• Noise reduction and echo cancellation
• High quality external microphone included

CODEC compatible:

• Audio: MP3/WMA/AAC/WAV/FLAC
• Video: MPEG1/ MPEG2/ MPEG4/ H.264/ WMV/ MKV
• Images: JPEG

Features of USB port:

• High Speed USB 2.0 port
• Maximum 1.5 A charge for selected phones
• Suitable for mass storage
• Show label information
• access to the list
• search categories
• Mix folders
• Skip
• Latest position/Resumption

Android functions and iPhone features:

• Music playback via Bluetooth®
• Android Auto wirelessly or via USB cable
• Android duplication wirelessly or via a USB cable
• Works with Apple CarPlay wirelessly or via USB (iPhone)

Audio functions and digital sound processor (DSP):

• Maximum output power 50W x 4
• 2 RCA preamplifier outputs (frontal and rear) + subwoofer (mono)
• Position control
• 15-band graphical equalizer
• Digital Time Alignment Adjustments (DTA): position/distance/gain/restore
• Speaker size control: Delantero/Trasero/Subwoofer
• Channel Level Control
• Volume control and serious reinforcement

Video functions:

• AV input or camera input (selectable)
• AV output: AV-in/USB/duplication (selectable)
• Back Camera Entry

Connectivity:

• GPS antenna range (type SMA)
• FM/AM antenna entrance
• 2 USB slots (boxes)
• Microphone input (miniconector 3.5 mm)
• RCA video input
• 2 RCA preamplifier outputs (frontal and rear) + subwoofer (mono)
• Assistant post
• camera input
• ISO adapter (quadruple adapter for SMH-580VW)

Accessories:
GPS antenna (5 m), DAB antenna (3 m), external microphone (3.5 m), 2 USB cables + microphone (1 m), camera input cable, AUX IN cable, RCA cable, ISO wiring harness (VW cable harness for SMH-580VW), installation frame (only for SMH-520DAB and SMH-550DAB), installation panel (only for SMH-5
