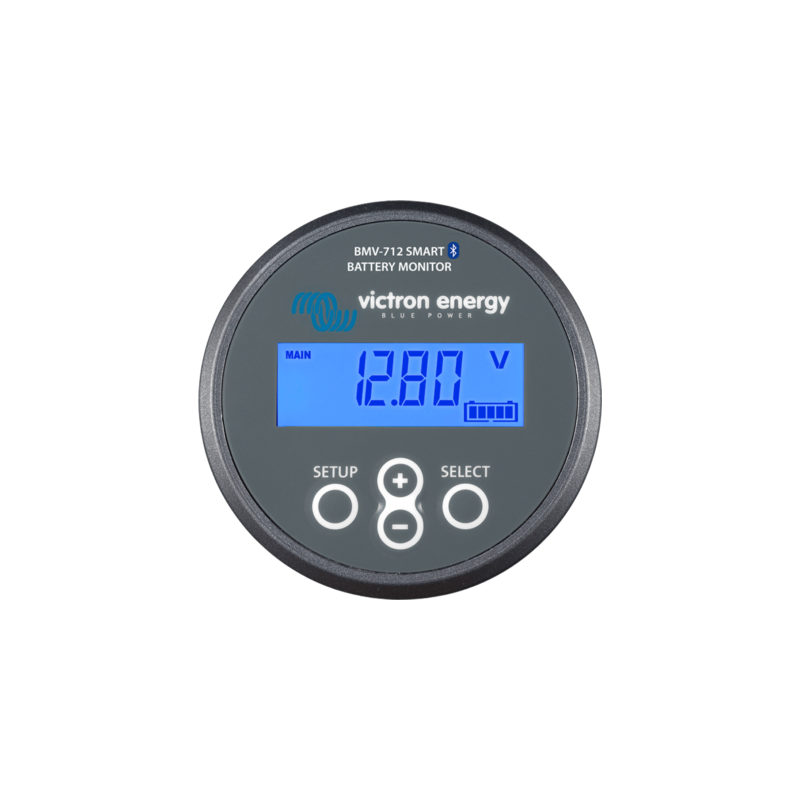

Victron BMV 712 Smart Battery Monitor with Bluetooth

details

• Display of the remaining battery life (tension, current, loading condition...).
• Suitable for all battery types.
• Bluetooth version
• programmable alarm
• Low consumption
• Quick installation
• Very low self-employment rate (approx. 2% per month)
• Perfect vibration resistance
• Exceptional recovery capacity, even after a deep or prolonged discharge (Precaution: These downloads have a negative impact on battery life!)

Bluetooth integrated
With its built-in Bluetooth device, the BMV Smart is ready for the Internet of Things era.Since Bluetooth functionality is implemented in most of Victron Energy's products, wireless communication between products will simplify system installation and increase efficiency.

Download the Victron Bluetooth app
Use a smartphone or other device with a Bluetooth connection

• adjust your settings,
• monitor all crucial data on one screen,
• to view the data history
• to update the software when new features are available.

Simple installation
All electrical connections are made through a fast connection connector on the printer circuit board (PCB) of the derivative.The derivation is connected to the controller using a standard RJ12 phone cable.Includes: RJ12 cable (10 m) and battery cable with fuse (2 m).No additional components are required.Other parts included are a screen with screen, a mounting ring for rear mounting and screws necessary for the front mounting.

More functions

• Battery voltage, current, power, consumed time ampers and charging status.
• Remaining range based on current use
• Programmable visual and audible alarm
• Relay programmable to turn off uncritical loads or start a generator if necessary.
• A 500A fast connection and referral kit.
• Possibility of a shunt with a capacity of up to 10,000 A.
• Communication port VE.Direct
• Recording numerous historical events that can be used to evaluate patterns.
• You can use the life and condition of the battery.
• Wide range of power voltage: 6.5 Δ" 70 V.
• Resolution for high current measures: 10 mA (0.01 A).
• An additional input to measure the voltage (from a second battery), the temperature or the average voltage and configure the corresponding relays and alarms.
