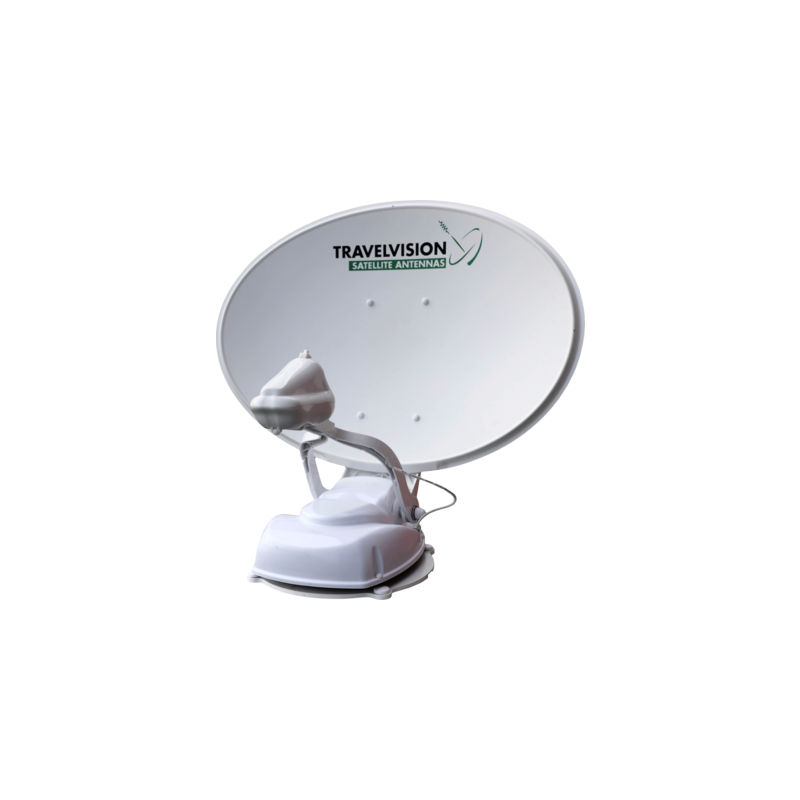

Satellite antenna Travel Vision E-Connect E65

Travel Vision E-Connect antennas are stable and robust construction systems.In combination with the low weight and minimum height of only 19.5 cm, the E-Connect satellite antennas are very suitable for assembly in mobile homes or caravans.The vehicle contains the control box and the separate control unit, which can be used to extend and remove the antenna and align it with the desired satellite.

Thanks to the integrated DiSEqC protocol, the E-Connect antennas are automatically aligned with the correct satellite if you have saved the multi-satellite programs on your television or satellite receiver and changes between these programs.

The antennas can be controlled both through the supplied control unit and through an app (available for iOS and Android).In addition, the SW update is easy to perform through the application.

By using durable and high quality materials, they offer years of operation without maintenance and without problems.

All Travel Vision satellite antennas are equipped with the latest DVB-S2 technology and are therefore perfectly suited for HD quality reception.

The E-Connect series is available in three versions

• E-65 Connect with 65 cm elliptical parabolic antenna
• E-85 Connect with an elliptical parabolic antenna of 85 cm
• E-85 Skew Connect with a 85 cm parabolic antenna and automatic inclination

Technical specifications

• Type of antenna: Mirror compensated
• Selectable satellites: ASTRA1, ASTRA2, ASTRA3, Hotbird, Eutelsat 9°, Thor
• Power supply: continuous voltage of 12...24 V
• Typical search time: 30...60 s
• Update SW: Using USB or App (iOS and Android)
• Construction height: 19.5 cm
• Dimensions (L x An): 92 x 88 cm (E-65) / 98 x 96 cm (E-85)
• Weight: 12.5 kg (E-65) / 14.0 kg (E-85)
