Full Büttner MT 120 FL Flat Light 120 Wp

Full MT Flat Light solar systems include all installation accessories.Each system is equipped with high quality individual components in a high quality design.Flat Light solar modules are equipped with high-performance monocrystalline cells.These maintain their high output voltage even in extreme outdoor temperatures and ensure high daily performance even in the southern holiday regions.The outer cable used is UV-resistant, as well as stable and water pressure hermetic cable output.This also applies to the roof duct made of high-quality rigid PU foam.The solar cable passes through it into the interior.Both are stable, but also remain extremely flat to ensure that the construction height is extremely low.Solar control is also state-of-the-art.

All complete systems are also equipped with an EBL connection cable set and are therefore state-of-the-art.

advice and information

Solar modules for direct glue!
These solar modules Flat Light ultraplanos are especially suitable for direct adherence to the roof of a motorhome.These modules are the alternative to standard solar modules previously presented with housing frames, especially when a total low height is required or access to solar modules.

Solar modules can also be adapted to slightly curved ceilings.However, to ensure the safety of the module, the specified curvature radii (3 cm in the longitudinal direction) should not be exceeded and the module should also be completely flat.Then the modules can also be stepped without problems.A great advantage of the cells used in this series of modules is the high performance combined with a very high voltage stability.As a result, fewer cells can be installed and, compared to previous modules, they are no longer adversely affected by high outdoor temperatures.This creates a compact solar module with an exceptionally high output power.

more details

• Specially developed for tourism vehicles.
  • Solar modules for mobile homes and caravans are requested differently than those of domestic systems!For mobile use, connection boxes should be water pressure-threatening (air flow) and welded connections should be specially designed for the vibrations produced.The construction of the frame also requires a special design to compensate for the torsion and floating forces that may occur.
• Low installation height
  • The solar module can be glued directly to the ceiling surface without a substructure (Flat Light and Flat Light Q).
• Low weight
  • With the same performance, weight advantages versus other solar systems with the same performance.
• Accessible modules
  • Solar modules can be stepped if they are glued.
• Suitable for AGM LiFePO4 + Gel

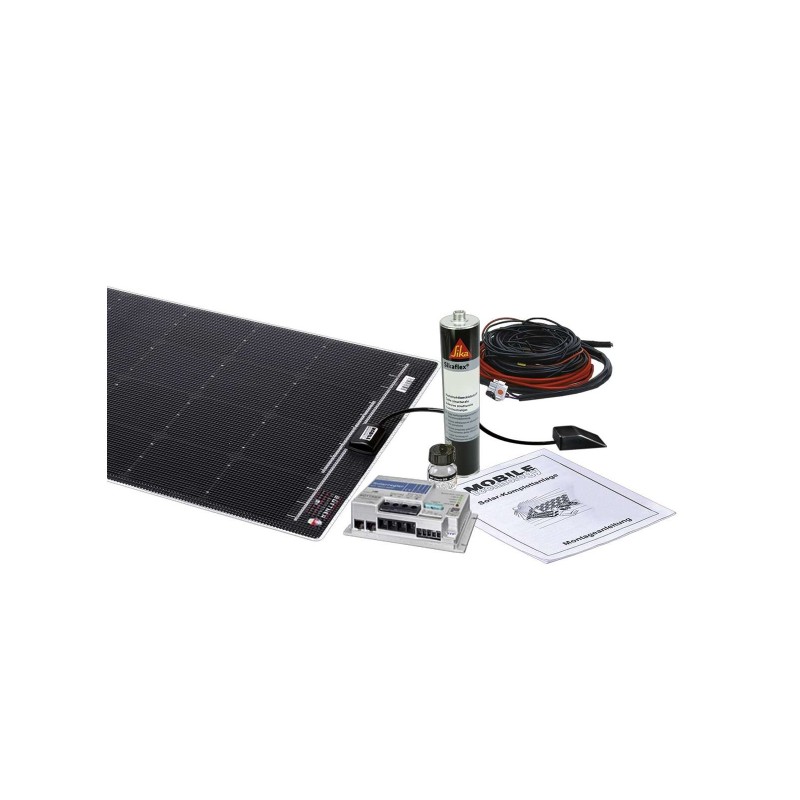

delivery scope

Ready to install with all the necessary components for ceiling mounting

• 1 or 2 solar flat light modules
• 1 x ceiling duct (printable)
• 1 MT load controller (see below)
• 1 adhesive game.
• 1 UV cable game.
• 1 EBL harness.
• 1 mounting material.
• glue instructions
• Assembly instructions
