Solar system Votronic LCD S

Energy and power meter for the solar system
How much energy does my solar system really supply?Are the solar modules shaded or dirty, or is something wrong?In order to answer these questions, VOTRONIC offers the LCD S solar computer, which simply connects to the VOTRONIC solar charge controller of the SR and MPP series and immediately provides the desired information.

The LCD S solar computer can also be connected to the controller later, as the VOTRONIC solar charge controllers are ready to plug in and supply the required signals.Therefore, the connection remains extremely simple.

The measured values for better control and use of the solar system are displayed on the screen in a clear and easy way to use with just touching a button.The screen is backlit (commutable) and is very easy to read, even from great distances and in all lighting conditions.

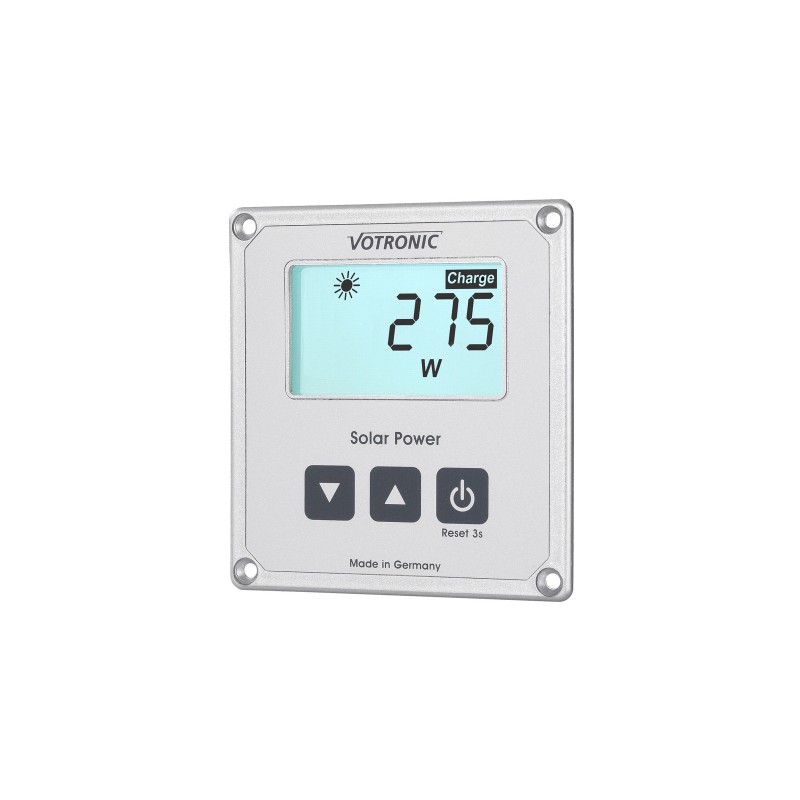

The LCD S solar computer is designed as a panel version to combine with the VOTRONIC module system and is aligned with the other visualization modules both optically and mechanically (unit height 85 mm).The small dimensions of the front panel and the particularly low installation depth of only 22 mm allow installation at almost any point.If the device is not installed flat, a corresponding surface mounting housing is available in our accessories range.The connection to the solar controller is ready to plug using the 5 m long connection cable supplied, which can extend another 5 m with an extension.

Details
Controlled by microprocessor, measured, calculated and displayed the following values

• Current solar power 0 - 999 W (watt)
• Current solar current 0 - 60,0 A (ampires)
• Geographical and climate-related influences are immediate and unequivocally evident.This also applies to sun orientation, partial shade or dirt of solar modules.
• Current solar battery voltage 7 - 32,0 V (volts)
• Allows to draw conclusions on the status of the battery (intermittent subtension warning or battery overvoltage)
• Loaded solar capacity 0 - 9999 Ah (more hours)
• Solar energy charged 0 - 9999 kWh (kilovatios time)
• The energy generated by solar modules (Wh and kWh) and the battery-loaded capacity (Ah) are measured, added and shown, even for days and weeks.Visualization values can be restored individually to "zero" at any time for their own statistical purposes

Technical specifications

• Battery rated voltage (CC) in [V] 12 and 24
• Maximum current consumption [mA] 3 - 30
• Screen: LC display with specific segments
• Display function: W, A, V, Ah, Wh
• Measurement range in [Wp] 20 - 990
• Dimensions (An. x Al. x Pr.): 80 x 85 x 25 mm
• Installation dimensions (An x Al x Pr): 66 x 72 x 22 mm
• Approval marks: CE, E-test (EMC/ vehicle direction)
• Environmental conditions, humidity: maximum 95 % of environmental humidity, without condensation

Scope of delivery
5 m connection cable, fixing screws, instruction manual, drilling template
